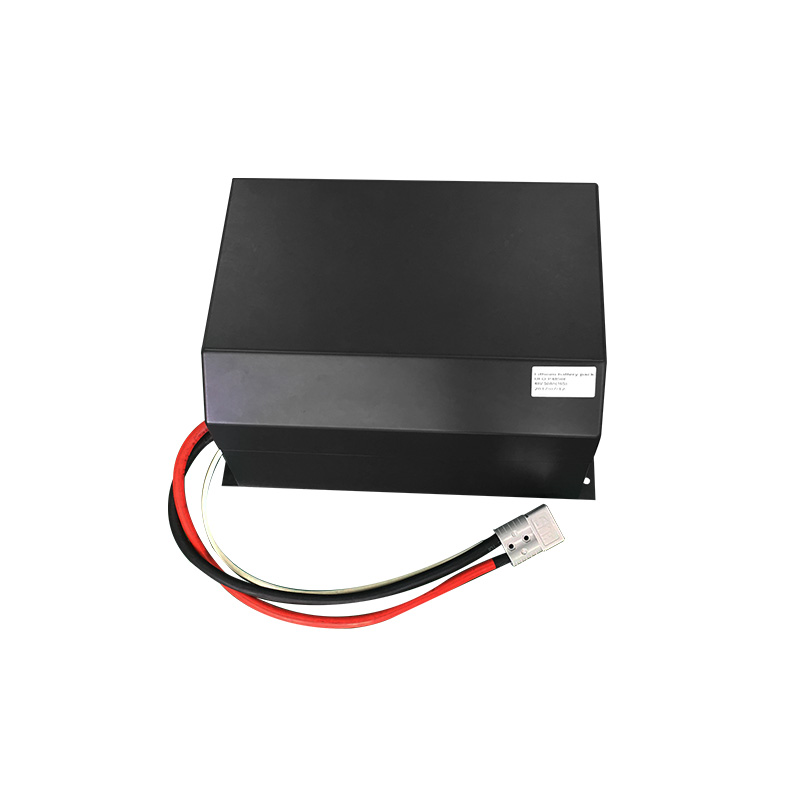

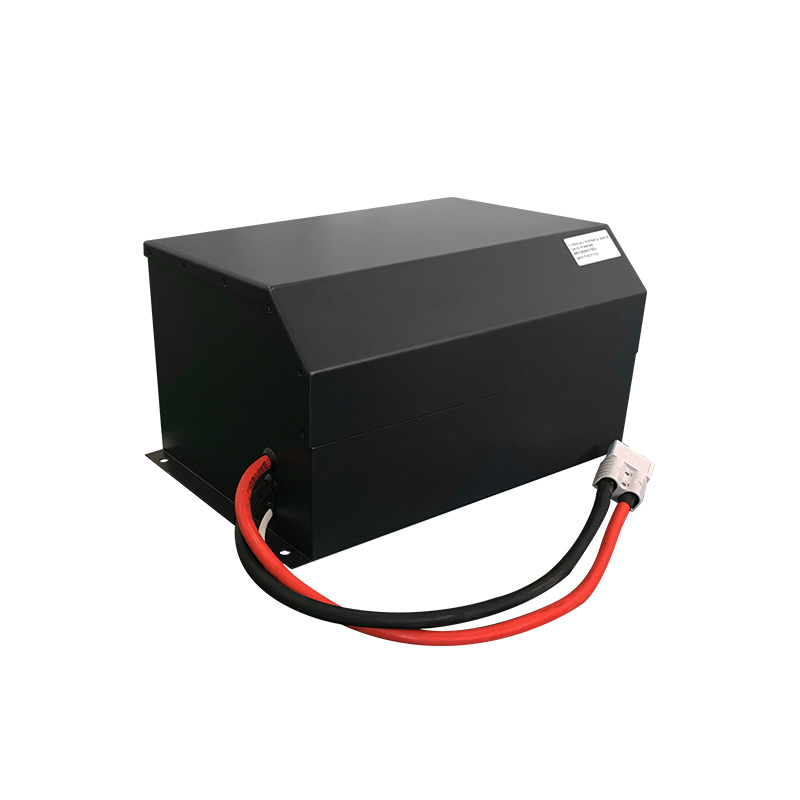

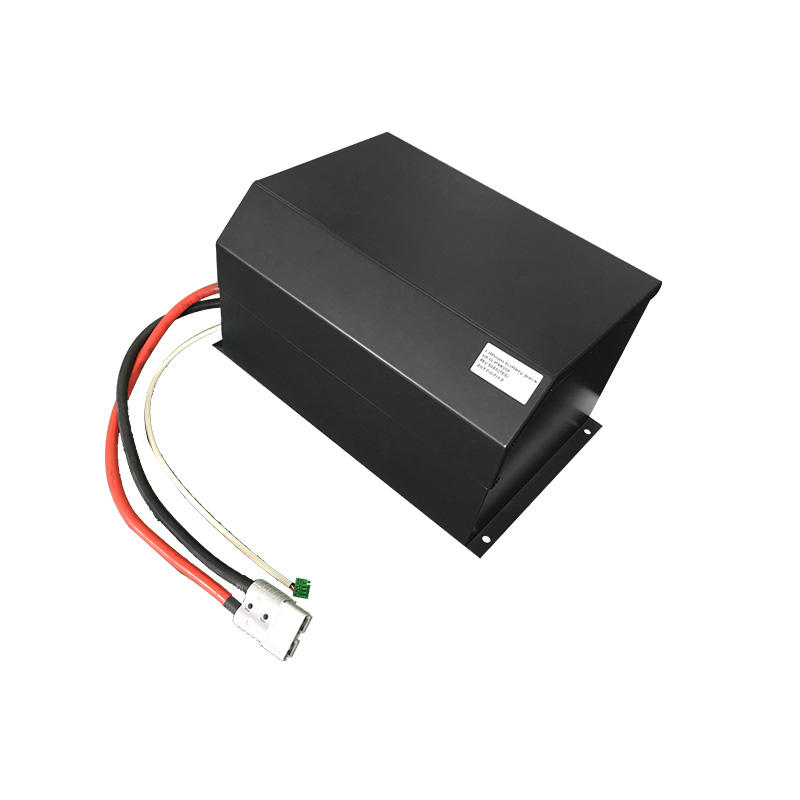

LiFePO4 battery pack 51.2V50Ah 2.56KWh for solar system telecommunication UPS AGV

LiFePO4 battery pack 51.2V50Ah 2.56KWh for solar system telecommunication UPS AGV

  • Silver Gray
  • Silver Gray
  • Silver Gray

51.2 V 50Ah

Item

General parameter

ELECTRICAL SPECIFICATIONS

Nominal Voltage

51.2 V

Nominal Capacity

50 Ah

Energy

2560Wh

Internal Resistance

20m廓

Efficiency

99%

Constant discharge current

10-50A

Constant charge current

10-50A

Recommend discharge operation temperature range

-20~60

Recommend charge operation temperature range

0~45

MECHANICAL SPECIFICATIONS

Dimensions

275*220*431mm

Weight

28kg

Case

Metal case

Cell Type

Chemistry Cylindrical/Prismatic- LiFePO4

Maximum Modules in parallel

/

PRODUCT DESCRIPTION

AGV lithium battery and robot lithium battery, included in Smart bms,which designed and manufactured by our R&D team , With this intelligent BMS, the product is endowed with the performance of overcharging protection, over-discharging protection, and overdrawing current protection and can read all detailed information from pc software , Even under the high temperature, the product can also perform well without any risk of safety.
This kind of product has a large capacity per unit and lighter weight than the common lead-acid batteries. It adopts NMC lithium technology to provide high power, high energy densities, and thermal stability. With a protection class of IP54, Each battery cell features high power. It has a longer cycle life of over 1000 times.

Function

꺖Air switch
꺖Overcharge detection function
꺖Over discharge detection function
꺖Over current detection function
꺖Short detection function
꺖Temperature detection function
꺖Balance function
꺖Communicate function
꺖Alarm function
꺖Limiting current (Optional)
꺖Total capacity function (Optional)
꺖Storage history function(Optional)
꺖Reverser protection (Optional)
꺖Dry contact function (Optional)
꺖LED Screen (Optional)
꺖Other function according to your requirements

Key Features

궆궆Compact modular integration
궆Easy connection in series or parallel
궆Intelligent battery management system
궆Built-in cell monitoring and balancing
궆Real-time monitoring
궆Multi-level safety design
궆Temperature detection function
궆Alarm function
궆Convenient for installation
궆Abundant communication interfaces
궆High operational reliability
궆Can be 15s and 16s
궆Intelligent BMS and standard BMS for option

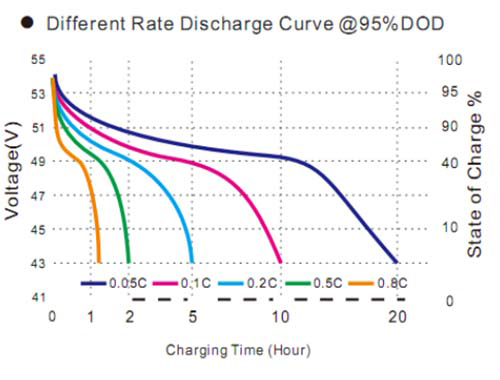

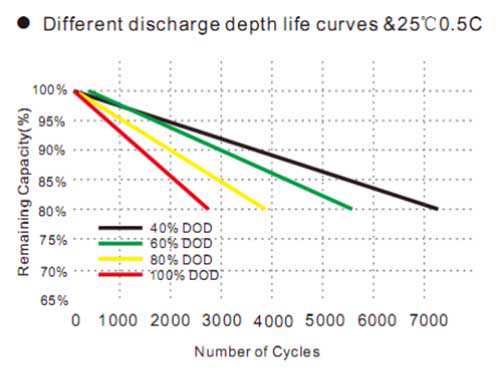

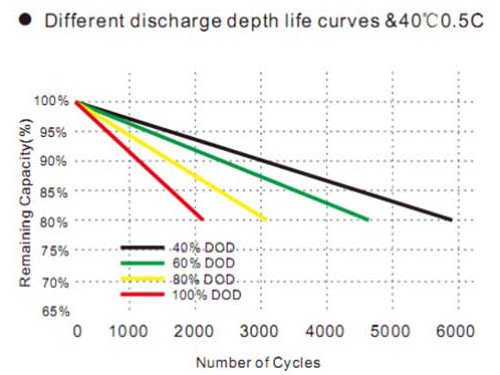

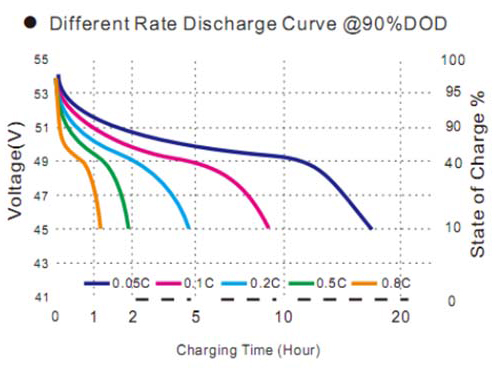

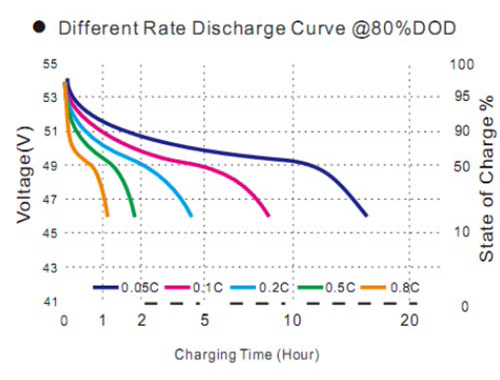

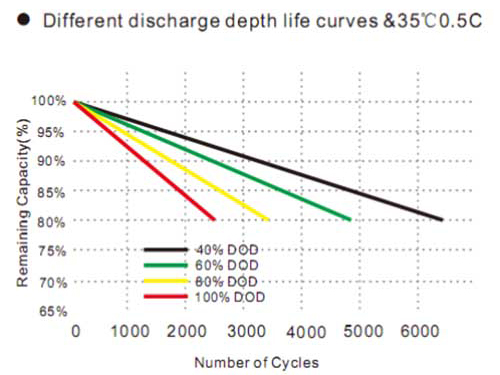

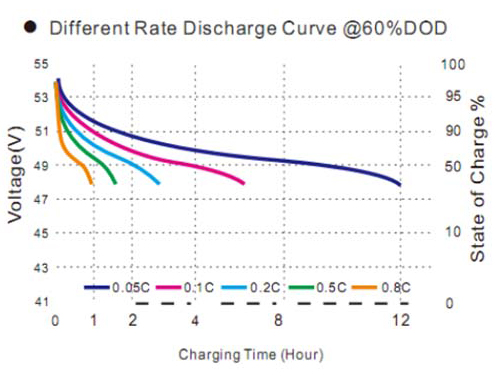

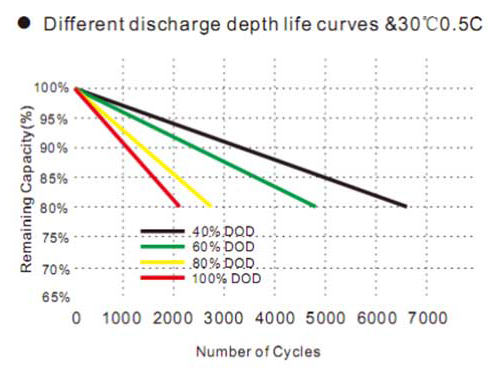

PERFORMANCE CHARACTERISTICS

We provide one stop solutions to various field and professionaly tech supoprt since 2005 ,Fully automatic intelligent production equipment, combined with automation control technology and lithium battery

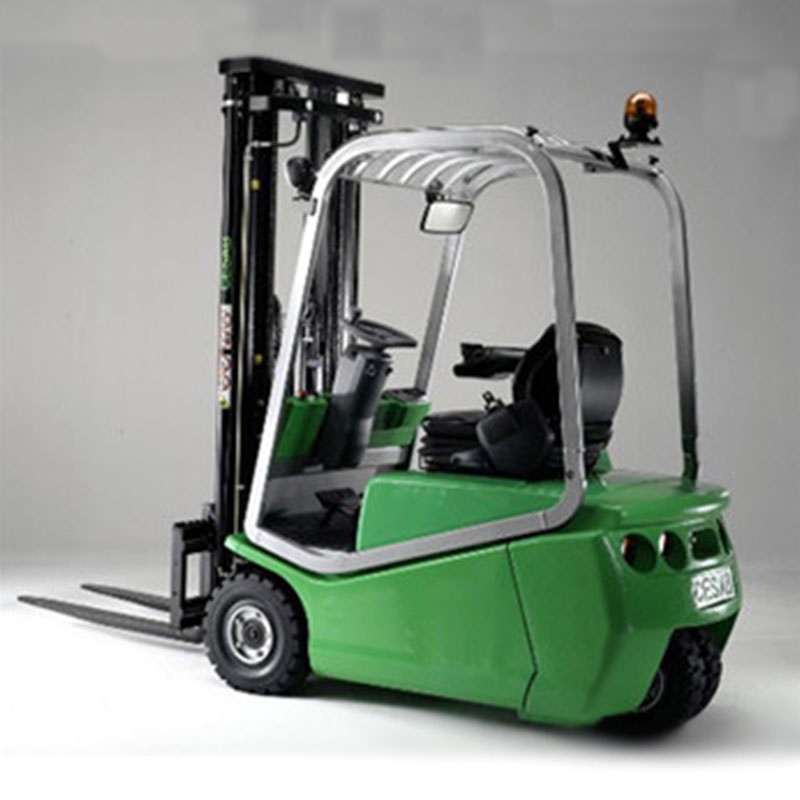

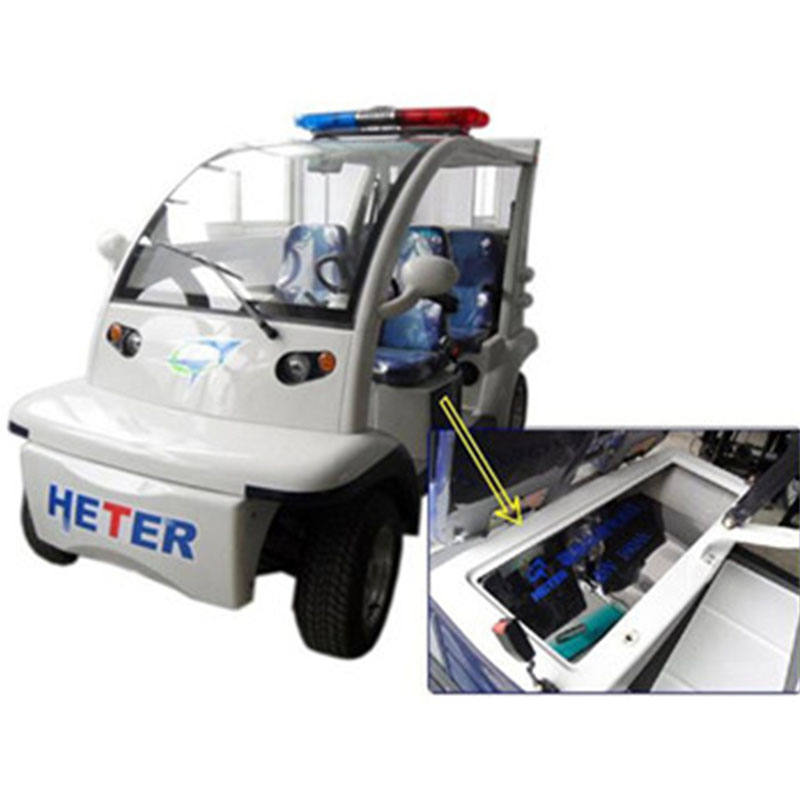

PRODUCT APPLICATION

Line vision control technology, smart robots to realize "whole line equipment + robot + software control" Intelligent
