Product

LiFePO4 Battery Pack

Silver Gray

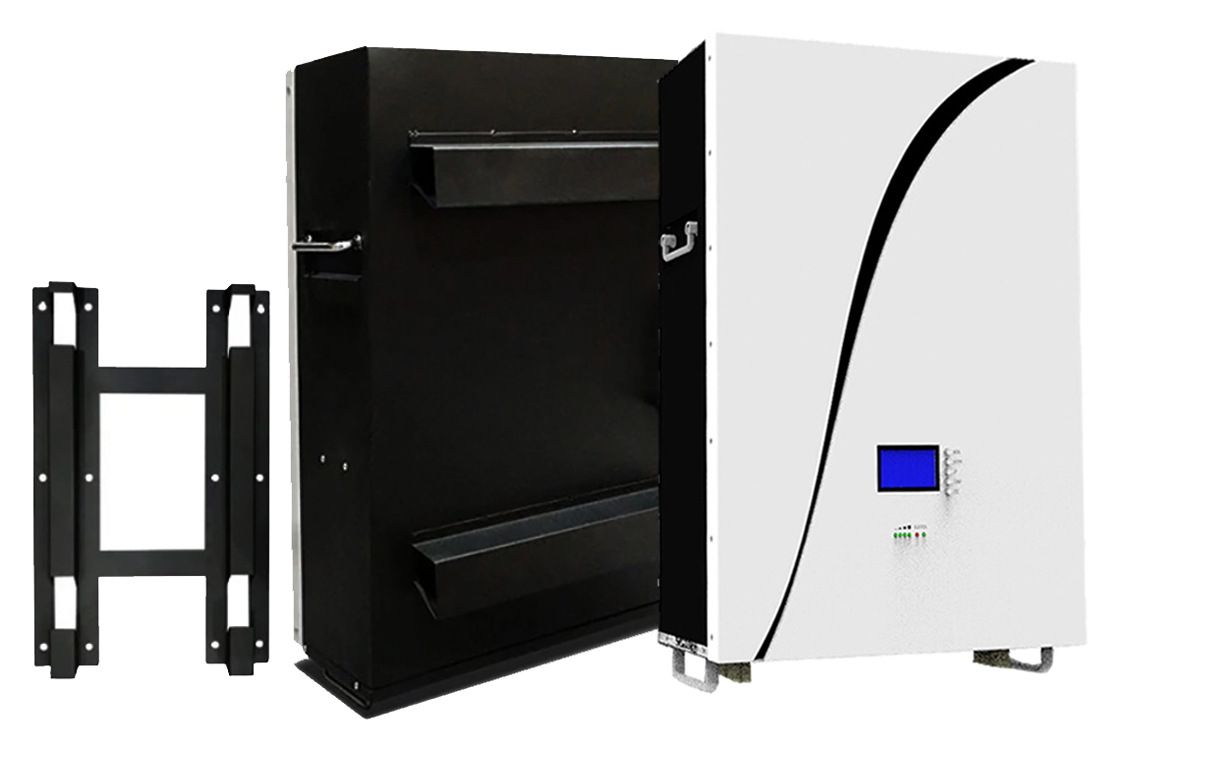

Silver Gray | YNC Wall Mounted Solar Battery | LiFePO4 Battery | 48V 100Ah 200Ah | Commercial & Residential Solar Storage

Wall Mounted Battery for Solar Storage System | LiFePO4 Battery [Optional GPRS Data Transmission Units(DTU)]

Backup Power, Commercial & Residential Energy Storage Battery

Color : Sliver Grey

Why Uses Wall Mounted Battery for Solar Power Storage?

Solar energy is an unlimited renewable energy source and now home Wall-mounted battery allows homeowners who interested in maintaining a self-power home to operate their house independently.

뿈 Self-sufficient and power to your home at anytime

뿈 Clean energy and no air/noise pollution

뿈 Cost-effective, save your money on electricity cost

뿈 Eco-friendly and lower energy bills



 PRODUCT SPECIFICATION

BASIC SPECIFICATIONS

Rated Reserved Energy

9.6Kwh

Nominal Voltage [V]

48V

Capacity [Ah]

200Ah

MECHANICAL SPECIFICATIONS

Width [mm]

680

Height [mm]

180

Depth [mm]

485

Weight [Kg]

87

Electrical Specifications

Charge Voltage [V]

54.0-54.8

VCharge-discharge Current[A]

100

Re-charge Time [h]

100A*1 Hour
     竊늆tandard Charge竊

Discharge Time up to

Discharge Power

Working Condition

Life @25째C

>10 Years

Cycle Life

>6000 Times

[80%DOD,@20째C]

Working Temperature

-20째C~+60째C

Regular Transportation

UN38.3

Temperature & Period for Storage

Months @+25째C

3 Months @+35째C

1 Months @+45째C

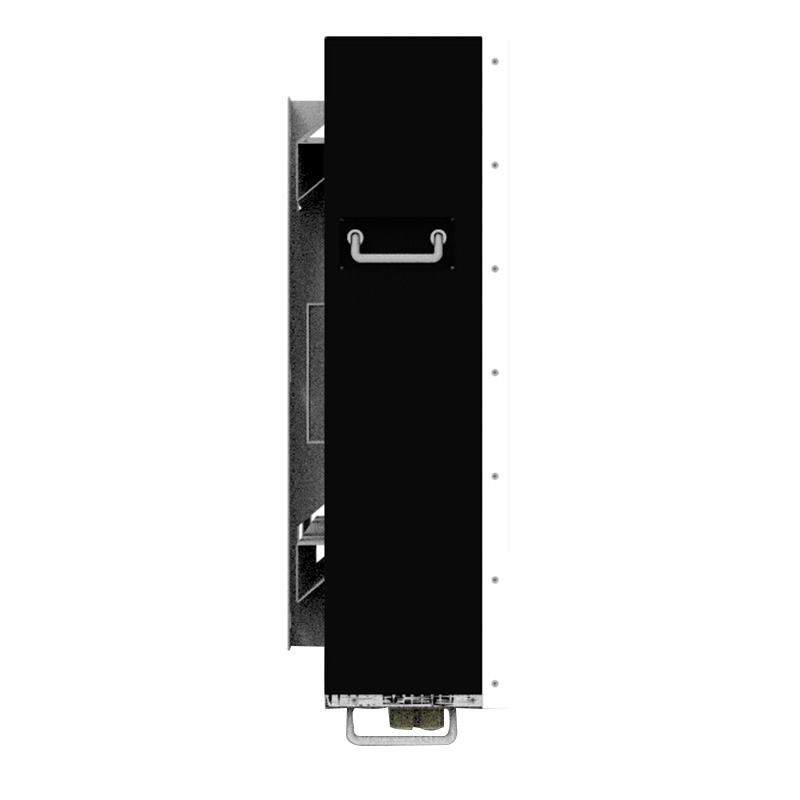

Compact Size & Light Weight
This is YNC Solar Battery with LiFePO4 technology. With the characteristic of high energy density, it is compact and makes space-saving possible.

The features of lightweight and compact size make YNC lithium-ion battery easy to handle.

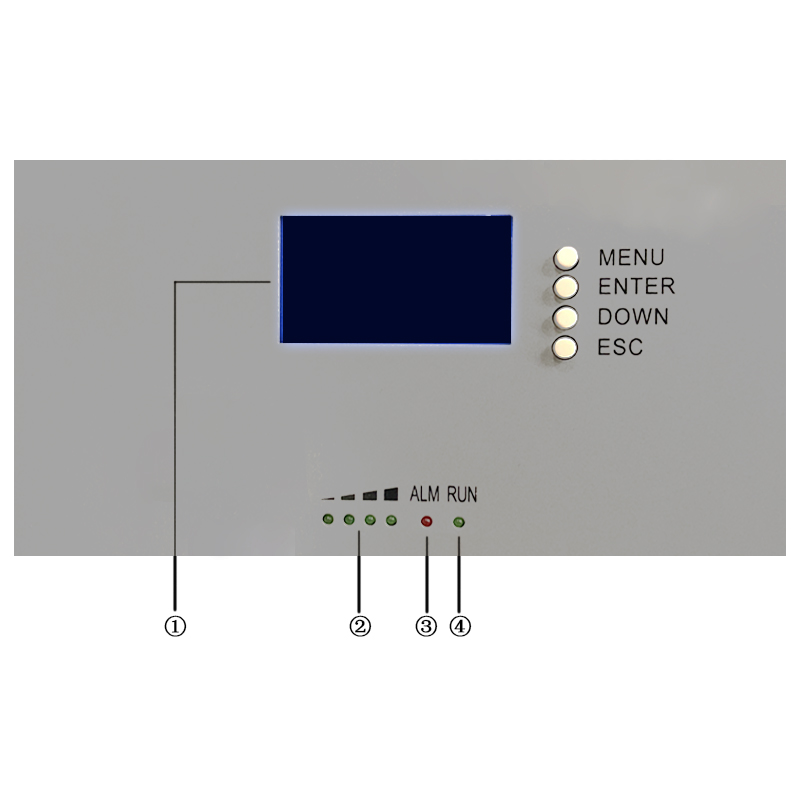

Digital LCD Screen
몺 LCD Display Menu

몼 Display the Powerwall capacity

몾 Display state information

몿 ALM alarm indicator light to alarm trouble.


Smart BMS
Built-in Intelligent BMS (battery management system) is designed to provide strong protection for the LiFePO4 battery from potential damage, and you can even monitoring or adjusting your battery 24/7.



P RODUCT DESCRIPTION

NEW GENERATION Wall-mounted Battery : Optional GPRS Data Transmission Units(DTU) in Lithium-ion Battery

YNC LiFePO4 batteries for energy storage (Wall-mounted Lithium battery) can be equipped with GPRS Data Transmission Units(DTU), which provides remote control of LiFePO4 battery and help monitor the status of LiFePO4 battery. The GPS Function within the Lithium-ion battery can provides positional tracking of battery to prevent from stealing. Whenever you use the battery APP on your cellphone, you are able to track the location of your Lithium-ion battery easily. Also, the GPRS function offers convenience to you for monitoring the performance of Lithium-ion battery, including battery temperature, voltage and more.

쁿 Why Choose YNC Lithium-ion Battery?

01 YNC Battery Upgrade our Lithium-ion Battery with The Lastest Battery Technology

YNC upgrade a new generation of lithium-ion battery for Powerwall lithium-ion battery. It is LiFePO4 Battery Pack with GPRS Data Transmission Units(DTU) which are able to help customers track the battery location and monitor the battery status with remote control. YNC 쐓mart home concept, the goal for home appliances in the future, is taking off. It lies in advanced internet connectivity and processing capability. YNC lithium battery models are applicable for various kinds of intelligent home appliances, providing power for long periods of time and with a stable discharging performance.

02 High-Quality Battery Cell Provides Long Operating Life

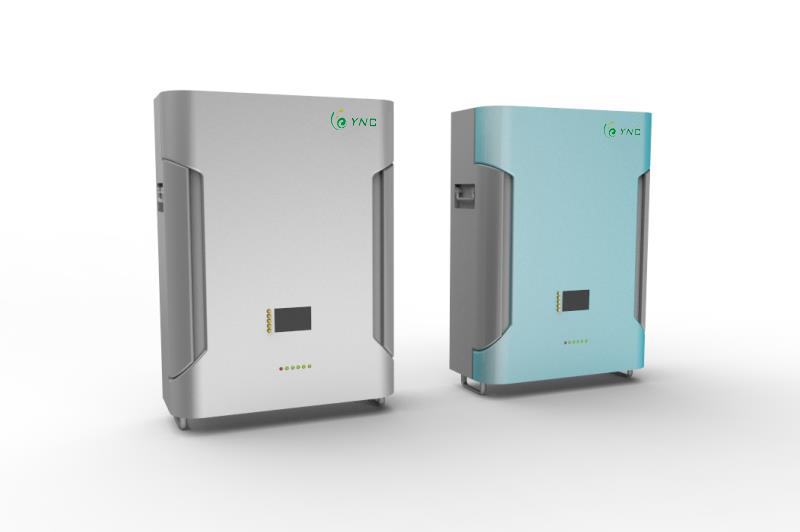

Designed with high-quality chemistry, YNC lithium-ion batteries own longer charging and discharging cycle times (2500 cycles) compared with lead-acid batteries. And the capacity fading is slow and predictable without the sudden drop. Silver Grey Wall Mounted Lithium Battery and Snow White Wall Mounted Lithium Battery are also good performance LiFePO4 Battery Pack to choose.

03 YNC Independently developed BMS Provides Quality Assurance

YNC BATTERY has our own R&D team for BMS, providing more effective battery protection to improve the stability of the battery and prolong battery lifespan.

YNC BMS

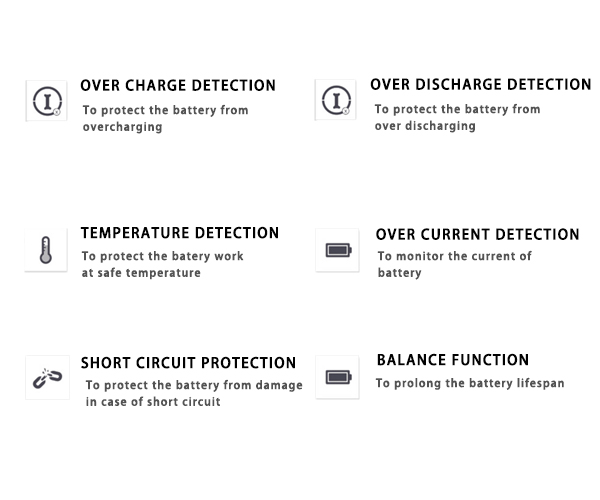

Battery Protection

04 High/Low Temperature Resistance Provides Superior Performance

With outstanding quality battery chemistry, YNC lithium-ion battery owns a good temperature resistance. The working temperature can range from -20째C to 60째C and it is an ideal replacement of the traditional lead-acid battery.

05 Compact size, lightweight, ideal replacement of lead-acid battery

The characteristic of high energy density of YNC lithium-ion battery makes space saving possible. Compared to lead acid battery, the weight of lithium-ion battery is 1/3 of that of lead-acid battery. Compact size but the same capacity makes lithium-ion battery an sensible investment than utilizing lead-acid battery.

Function

겣Cell voltage monitoring
겣Charge/discharge current monitoring
겣Hardware protection
겣Discharge control
겣Charge control
겣Balance
겣Temperature Monitoring
겣Work Status Indication LCD &LED lamp竊
겣PACK Voltage Monitoring
겣Failure alarm
겣Multiple batteries can be connected in parallel <<20sets

Advantage

겣Save more space with high energy density
겣No need for refrigeration equipment
겣High operation reliability
겣Long service life
겣YNC management strategy
