ELECTRICAL
SPECIFICATIONS

Operation Voltage

48V

48V

60V

60V

Typical Capacity

54 Ah

63 Ah

105Ah

126Ah

Internal Resistance

≤ 50mΩ

≤ 50mΩ

≤ 60Ω

≤ 60Ω

Charging Voltage

52.5V-54.75V

52.5V-54.75V

66.5V-69.35V

66.5V-69.35V

Discharging current (Std.)

10A

12A

20A

25A

Charging current (Std.)

10A

12A

20A

25A

Recommend discharge operation temperature range:

-20~+55°C

-20~+55°C

-20~+55°C

-20~+55°C

Recommend charge operation temperature range

0~+45°C

0~+45°C

0~+45°C

0~+45°C

MECHANICAL
SPECIFICATIONS

Dimensions (L x W x H)

420*225*185mm

420*225*185mm

690*350*250mm

690*350*250mm

Weight

28kg

28kg

63kg

93kg

Function

X

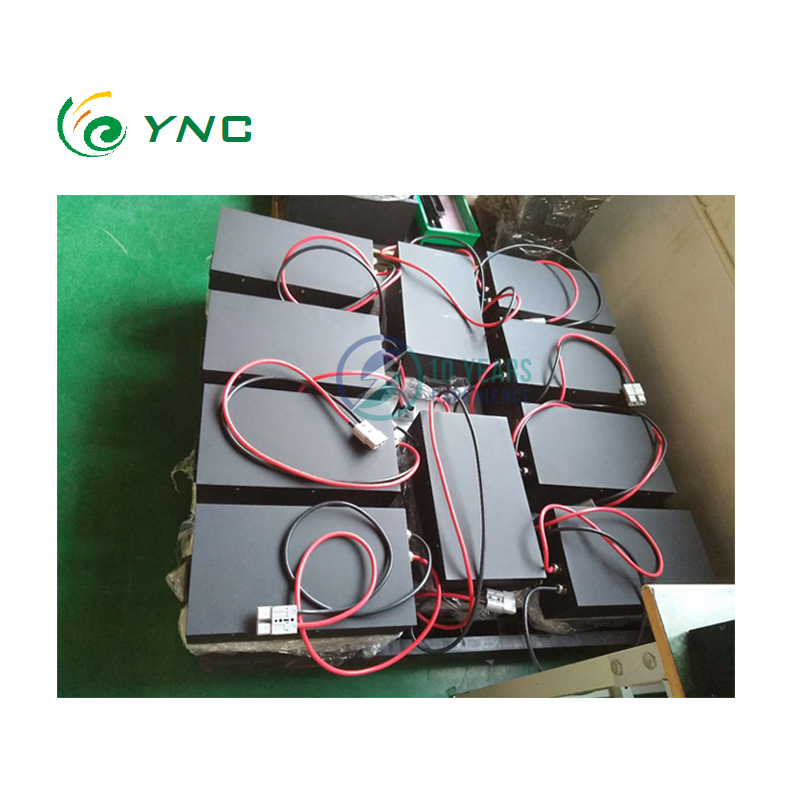

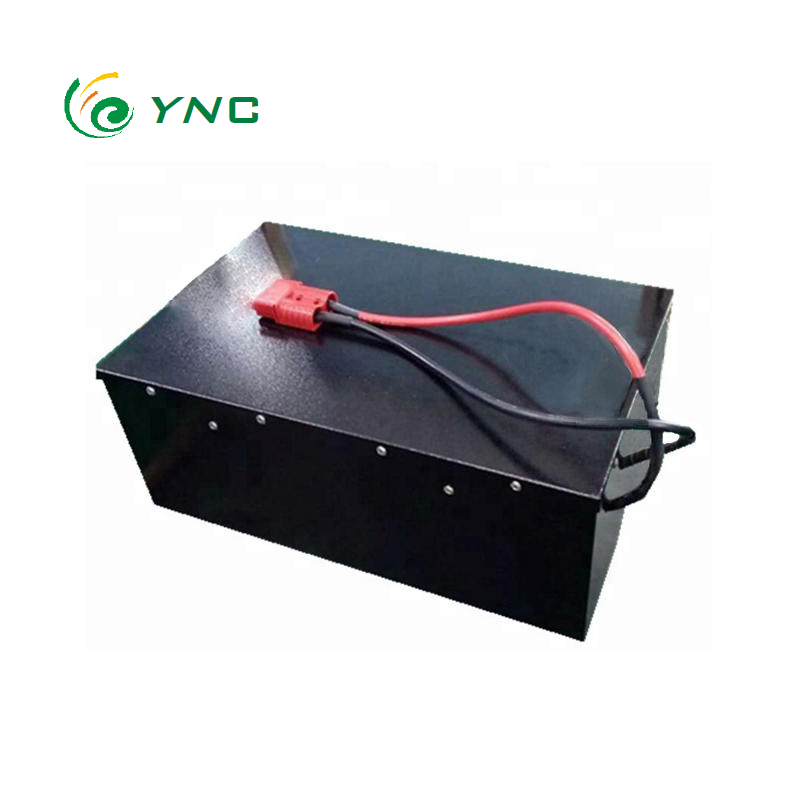

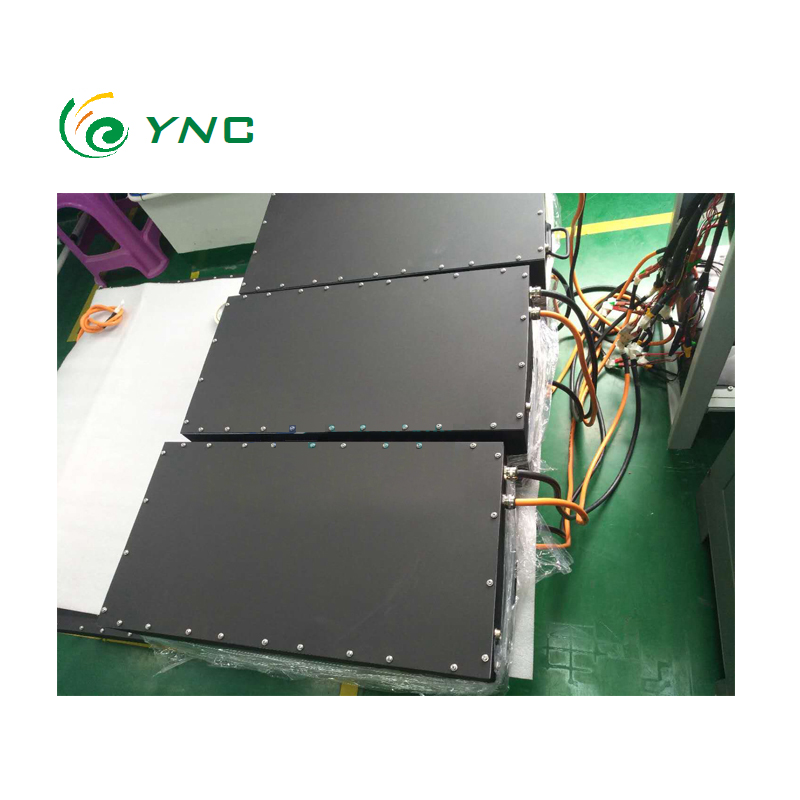

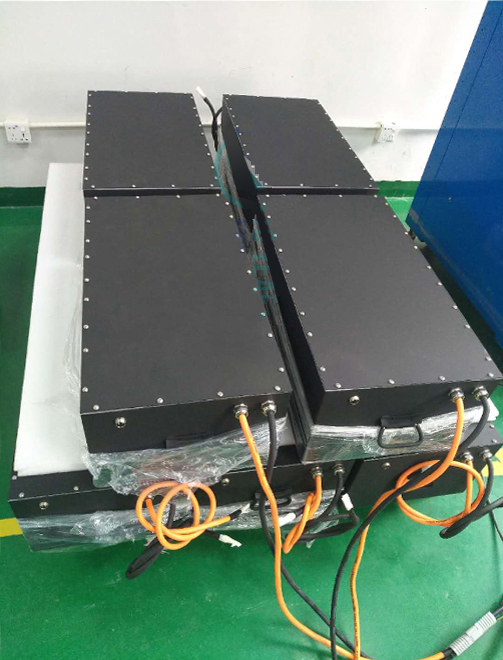

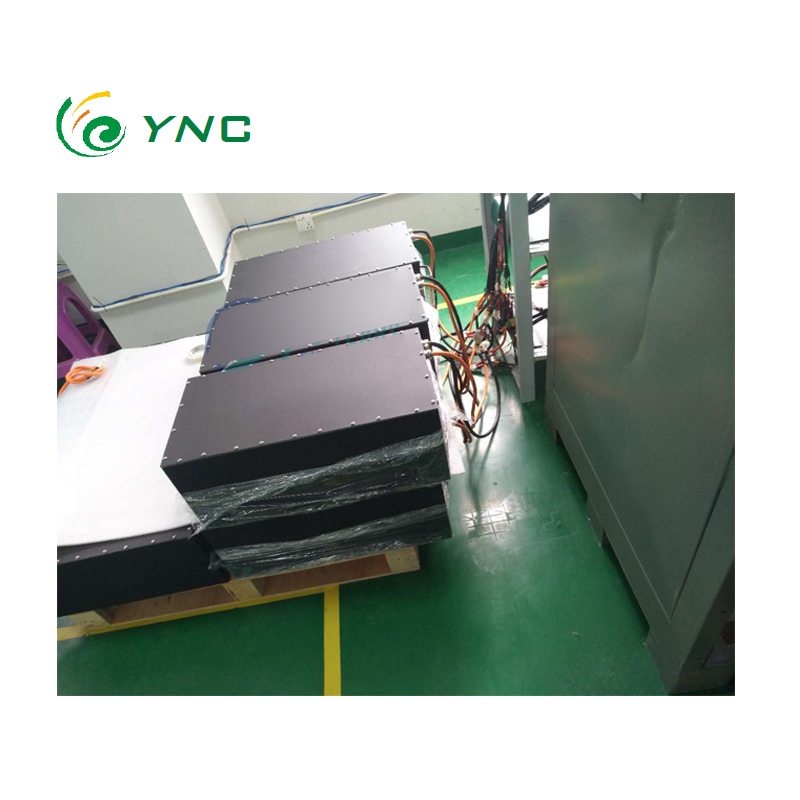

Product appearance with water protection

Product appearance with water protection

Product appearance with water protection
