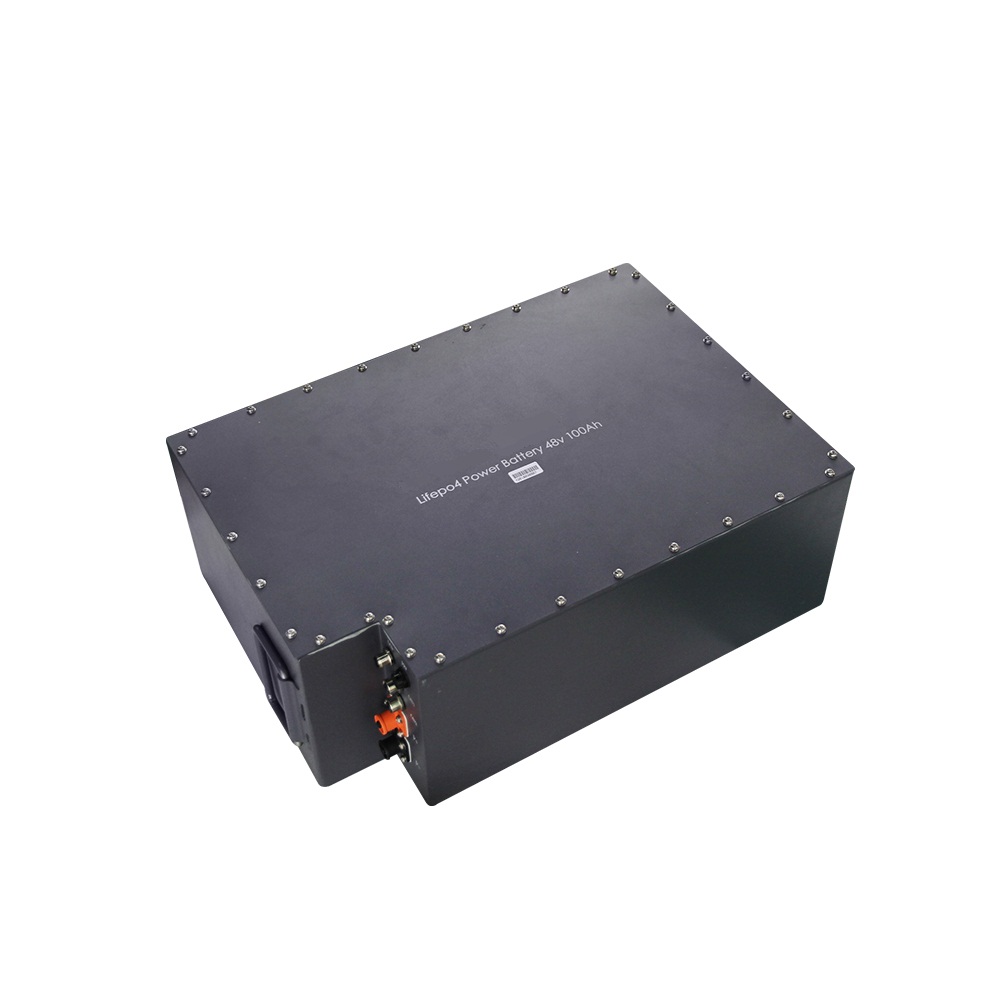

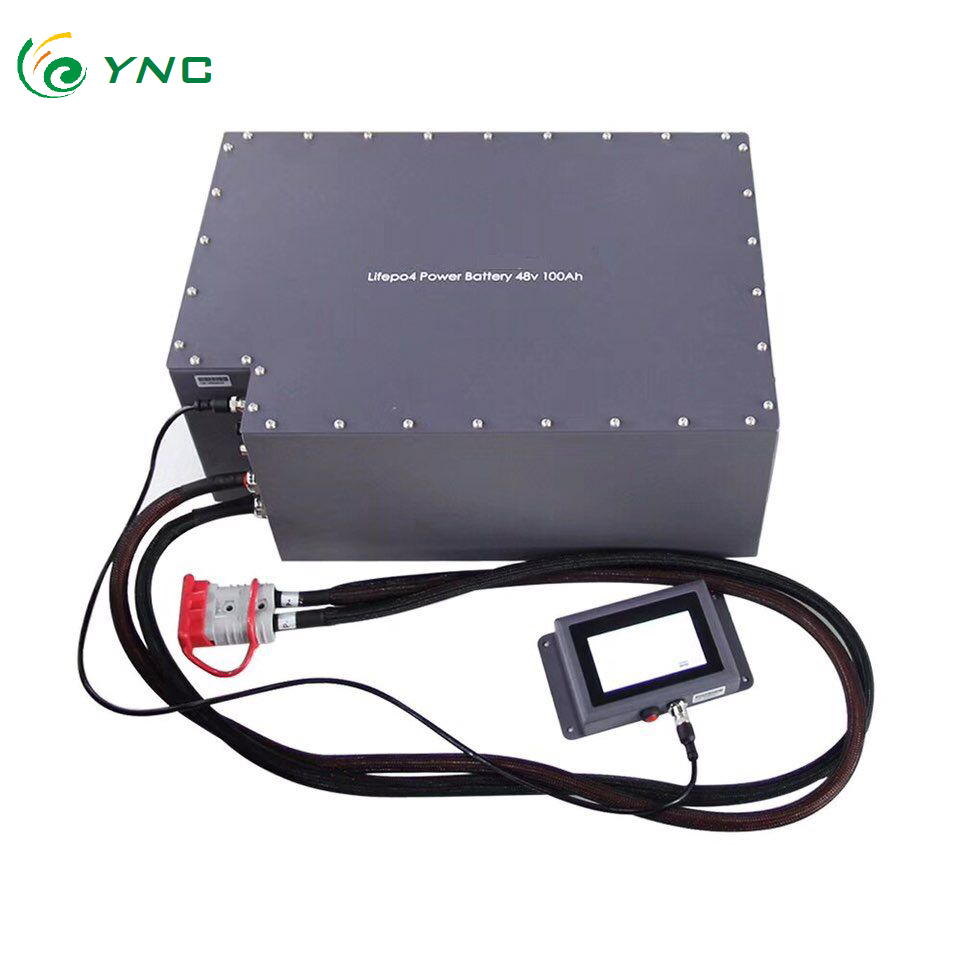

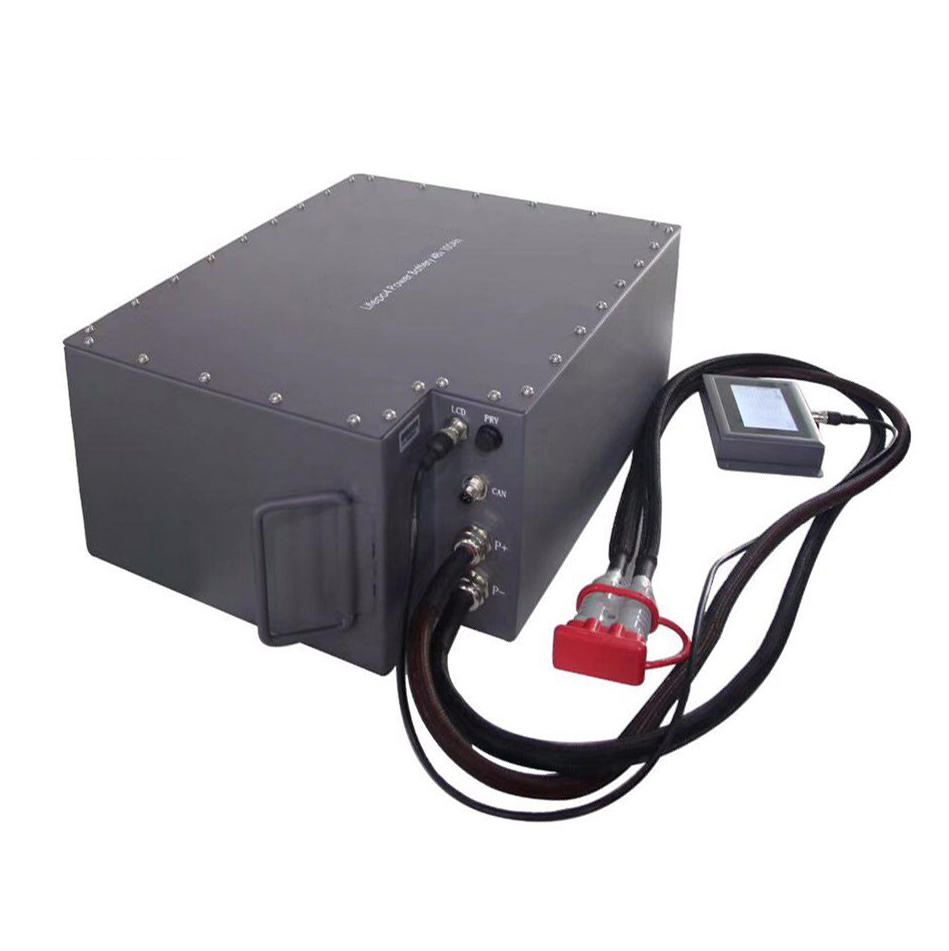

AGV Battery 48V100Ah

AGV Battery 48V100Ah

  • Silver Gray
  • Silver Gray

BASIC SPECIFICATIONS

9.6Kwh

Nominal Voltage [V]

48V

Capacity [Ah]

100Ah

MECHANICAL SPECIFICATIONS

Width [mm]

335

Height [mm]

545

Depth [mm]

710

Weight [Kg]

79

Electrical Specifications

Voltage Window [V]

52.8~54.4

Charge Voltage [V]

58.4-59.2

Charge-discharge Current[A]

100

Charge Mode

CC-CV

Output Power [W]

5KW

Re-charge Time [h]

100A*1 Hour竊늆tandard Charge竊

Discharge Time up to

Discharge Power

Different Demands

2h*[W]

2400

4h*[W]

1200

8h*[W]

600

Working Condition

Life @25째C

>10 Years

Cycle Life

>6000 Times

[80%DOD,@20째C]

Working Temperature

-20째C~+60째C

Regular Transportation

UN38.3

Temperature & Period for Storage

6Months @+25째C

3 Months @+35째C

1 Months @+45째C

PRODUCT DESCRIPTION

YNC lithium battery models are applicable for various kinds of AGV applications, providing power for long periods of time and with a stable discharging performance.

Designed with high-quality chemistry, YNC lithium batteries own longer charging and discharging cycle times (2500 cycles) compared with lead-acid batteries. And the capacity fading is slow and predictable without sudden drop.

Function

겣Cell voltage monitoring
겣Charge/discharge current monitoring
겣Hardware protection
겣Discharge control
겣Charge control
겣Balance
겣Temperature Monitoring

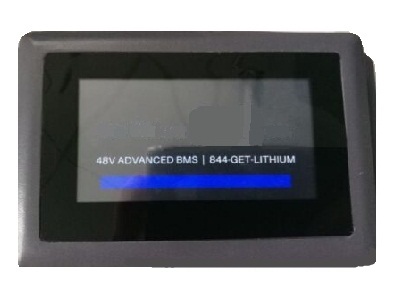

겣 LCD Display
겣PACK Voltage Monitoring
겣Failure alarm

Advantage

겣Save more space with high energy density
겣No need for refrigeration equipment
겣High operation reliability
겣Long service life
겣YNC management strategy

PERFORMANCE CHARACTERISTICS

We provide one stop solutions to various field and professionaly tech supoprt since 2010, fully automatic intelligent production equipment, combined with automation control technology and lithium battery.
