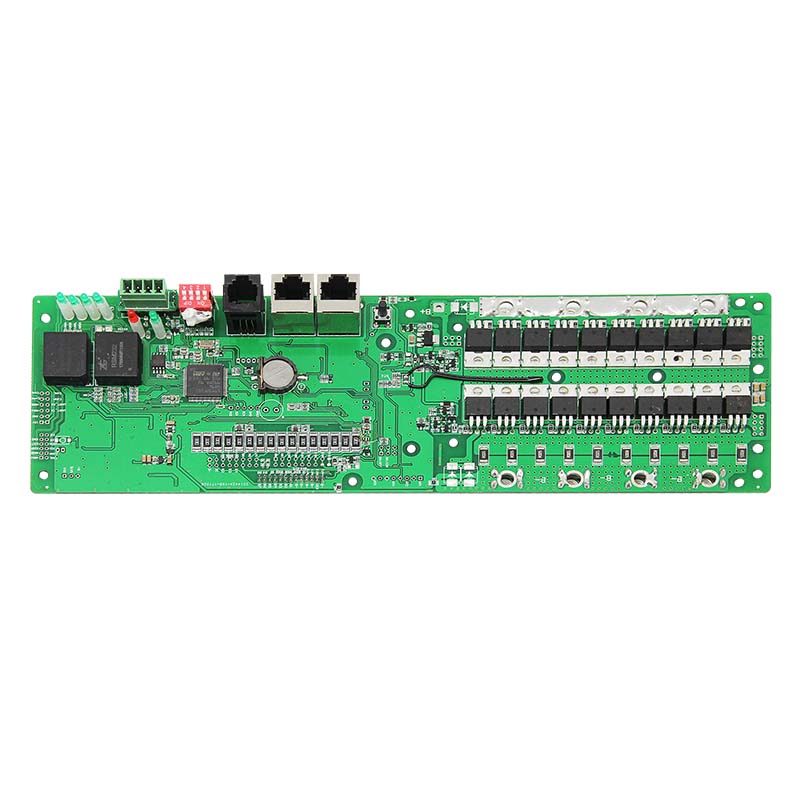

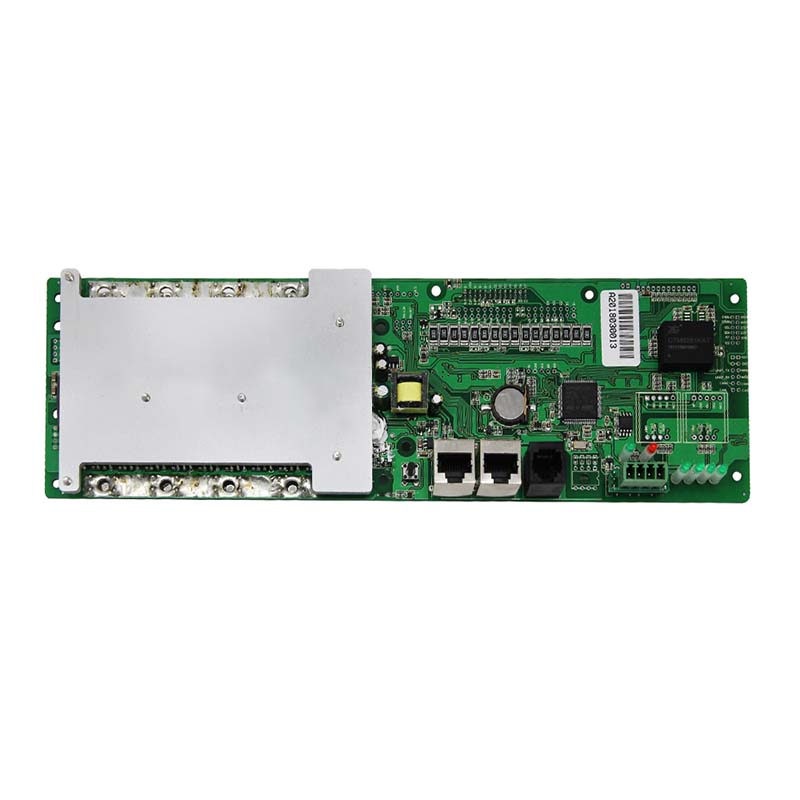

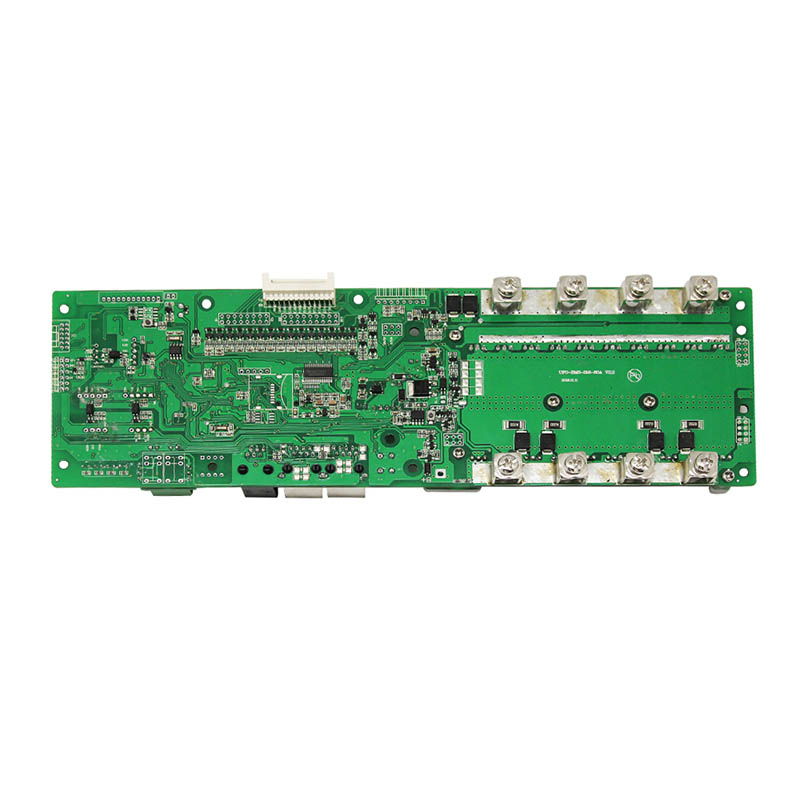

16S 15S 100A BMS for LiFePO4 Lithium ion Battery management system

16S 15S 100A BMS for LiFePO4 Lithium ion Battery management system

  • Silver Gray
  • Silver Gray
  • Silver Gray

Item

Programmable

Monomer overcharge protection

Yes

Monomer overvoltage release

Yes

Monomer over-discharge protection released

Yes

Overall over-charge protection

Yes

Overall overvoltage protection released

Yes

Overall over discharge protection

Yes

Overall over-discharge protection released

Yes

Over charge protection

Yes

Charging overcurrent protection

Yes

Discharge overcurrent 1 protection solution except

Yes

Discharge overcurrent 2

Yes

Discharge overcurrent 2 protection release

Yes

Short circuit protection

Yes

MOS high temperature protection

Yes

Cell temperature protection

Yes

Ambient temperature alarm

Yes

Current consumption

Yes

Banlance function

Yes

Capacity default setting

Yes

Sleep function

Yes

PRODUCT DESCRIPTION

THE FULLY DESIGN ,ENGINEERING AND PRODUCTION ON OUR BMS , PCBA , PCB

YNC POWER have been developing these intelligent battery systems used for lithium ion battery for many years , YNC POWER intelligent BMS / PCB / PCBA allow Lithium batteries to manage their own charging and discharging both efficiently and safely.

We cater for all sizes of battery, from the smallest single cell solution with simple electronic protection through to large high voltage batteries with active cell balancing.

All of our battery electronics are designed in house to ensure that protection, fuel gauging and even the physical PCB itself are designed around the required battery performance parameters. This approach means that you get the maximum performance, safety and functionality out of each battery. There are no unforseen communication errors, no failure of critical components at extremes of temperature and no oversized PCBs taking up space and making the battery (and your device) larger than it needs to be.

YNC POWER Test each cells and BMS/PCB/PCM before manufactuing and promise it is functional and safety to use .

BMS / PCB / PCM is the key components of Lithium battery pack. BMS is Battery Management System,which is any electric and electronic system that manages a rechargeable battery (cell or battery pack), such as by monitoring its state, calculating datas, reporting that data, protecting the battery, to show the battery working status , controlling its environment, setting its parameters and balancing it.

Function

꺖Air switch
꺖Overcharge detection function
꺖Over discharge detection function
꺖Over current detection function
꺖Short detection function
꺖Temperature detection function
꺖Balance function
꺖Communicate function(RS485 RS232)
꺖Alarm function
꺖Limiting current (Optional)
꺖Total capacity function (Optional)
꺖Storage history function(Optional)
꺖Reverser protection (Optional)
꺖Dry contact function (Optional)
꺖LED Screen (Optional)
꺖Other function according to your requirements
꺖I/O

Key Features

깦Highly integrated analog front end
깦Adjustable overcurrent protection
깦Isolated power circuit
깦Variety of sleep and wake-up methods
깦Integrated serial IC
깦RS232 communication
깦High voltage accuracy (돞20mV)
깦RS485 communication
깦High current accuracy (돞2%@FS)
깦Parameter adjustable setting
깦4-channel battery temperature test (돞3째C)
깦Buzzer alarm function
깦SOC estimation function
깦LED status indication function
깦SOH estimation function
깦With charge balancing
깦Short circuit protection
깦Low power consumption
깦Parameters is programmable
